HPE MicroSvrG10+v2 E-2314 32G P70335-425

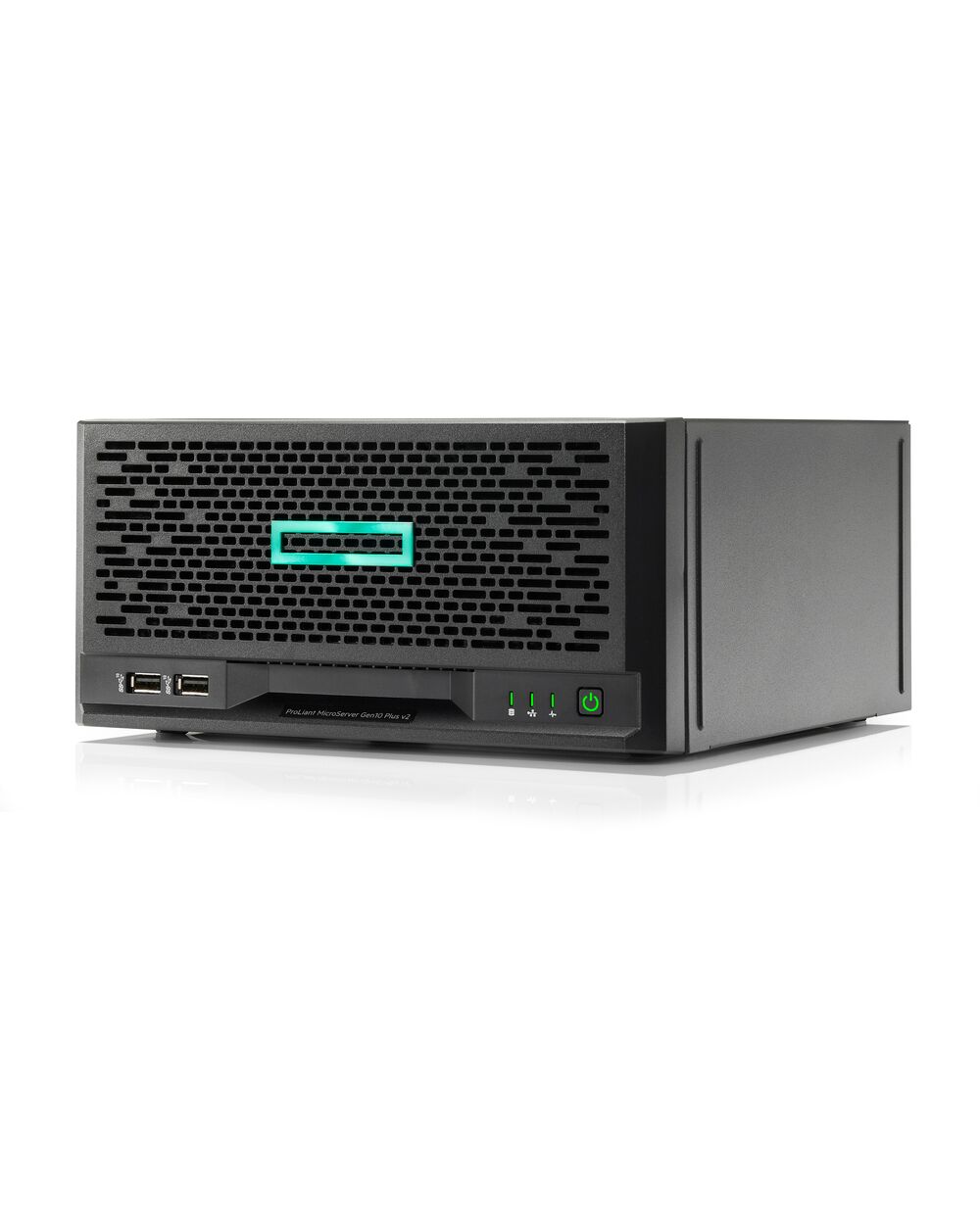

HPE ProLiant MicroServer Gen10 Plus v2

Processor

Processor typeIntel®

Processor familyIntel® Xeon® E-2300 processors, Intel®Pentium® Gold Processor series

Processor number1

Processor core available2 to 4 core, depending on processor

Processor speed4.1 GHz maximum, depending on processor

Processor cache4 to 8 MB Intel® Smart Cache, depending on processor

Server Memory

Memory typeHPE DDR4 Standard Memory

Maximum memory64 GB with 32 GB DDR4 UDIMM

Memory slots2

Memory protection featuresUnbufferred ECC

Server Expansions

Expansion slots1, for detailed descriptions refer to the QuickSpecs

Server Form Factor

Form factorUltra Micro Tower

Server Controllers

Network controllerEmbedded 1Gb 4-Port Intel i350-AM4 Controller

Storage controllerEmbedded Intel VROC SATA SW RAID

Server Drives

Drive supported4 NHP LFF SATA HDD or 4 NHP SFF SATA SSD

Warranty

WarrantyServer Warranty includes 1-Year Parts, 1-Year Labor, and 1-Year Onsite support with next business day response. Warranty repairs may be accomplished using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) A trained, authorized service engineer must service non-CSR parts. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home NOTE: Warranty does not cover support for ClearOS. ClearCenter provides support for ClearOS.

Weights and Dimensions

Weight4.23 kg (9.33 lb)

Dimensions11.89 cm x 24.5 cm x 24.5 cm (4.68 in x 9.65 in x 9.65 in)
