Neomounts Monitor arm 10-49" - gas spring - Topfix - 180°-stop (NEDNM-D775BLACKPLUS)

Specifications

General
Min. screen size*:
 10 inch

Max. screen size*:
 49 inch

Min. weight:
 1 kg

Max. weight:
 18 kg

Max. weight curved/ultra-wide:
 14 kg

Screens:
 1

VESA pattern:
 75x75, 100x100 mm

VESA minimum:
 75x75 mm

VESA maximum:
 100x100 mm

Desk mount:
 Grommet, Clamp

Functionality
Type:
 Full motion

Height adjustment:
 27-60 cm

Depth adjustment:
 0-63 cm

Tilt (degrees):
 +45°, -45°

Swivel (degrees):
 360°

Rotate (degrees):
 180°

Adjustment type:
 Gas spring

Information
Article number:
 NM-D775BLACKPLUS

EAN:
 8717371447809

Color:
 Black

Main material:
 Steel

Warranty:
 5 year

*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.

10- 49 inch

1 - 18 kg

75x75 - 100x100 mm

27-60 cm

0-63 cm

+45°, -45°

360°

180°

5 year

Product information

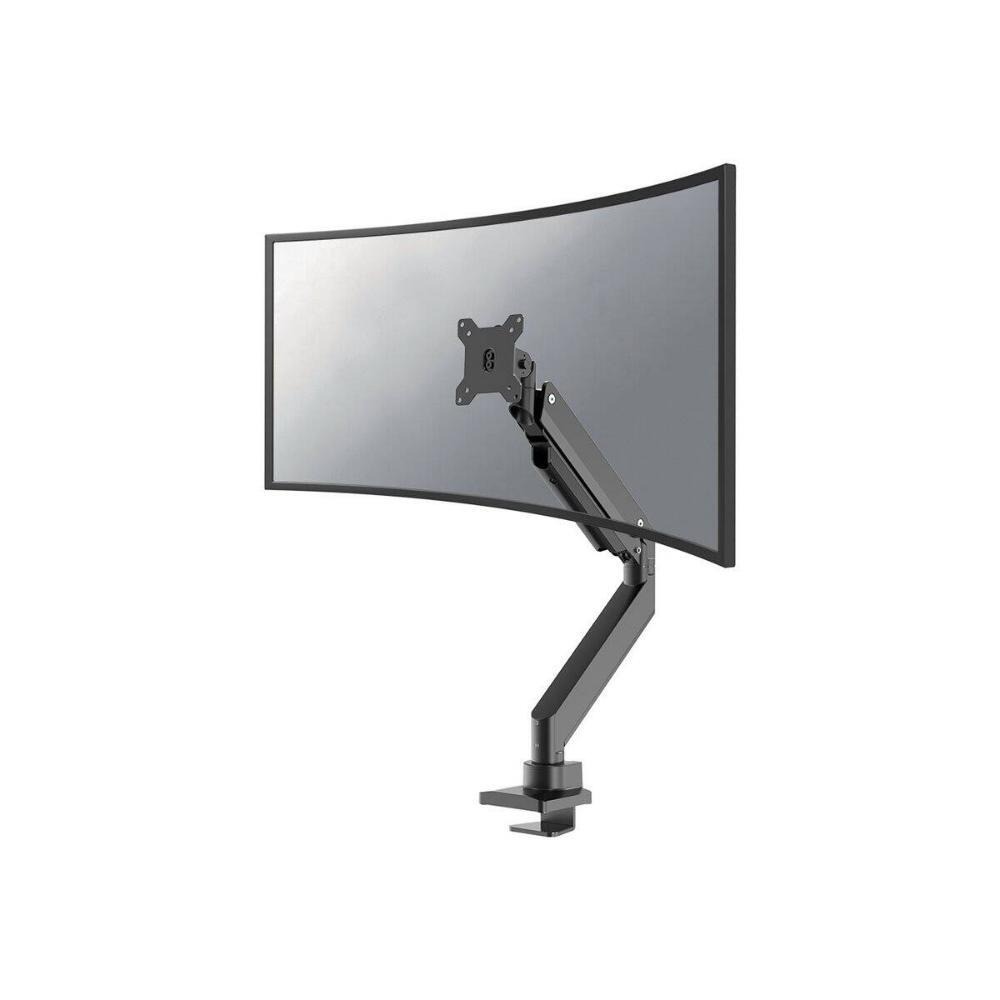

The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

All installation material is included with the product.
