ASUS DOCKING Triple 4K Thunderbolt 5 Dock DC510
ASUS DOCKING Triple 4K Thunderbolt 5 Dock DC510
Model
ASUS Master Thunderbolt 5 Dock DC510
Category
Dock
I/O Ports
1x SD card reader 4.0 (UHS II)
1x Micro SD card reader (UHS II)
1x RJ45 2.5 GbE
1x Audio combo jack
1x Kensington lock
1x Power button with indicator LED
3 x Thunderbolt™ 5

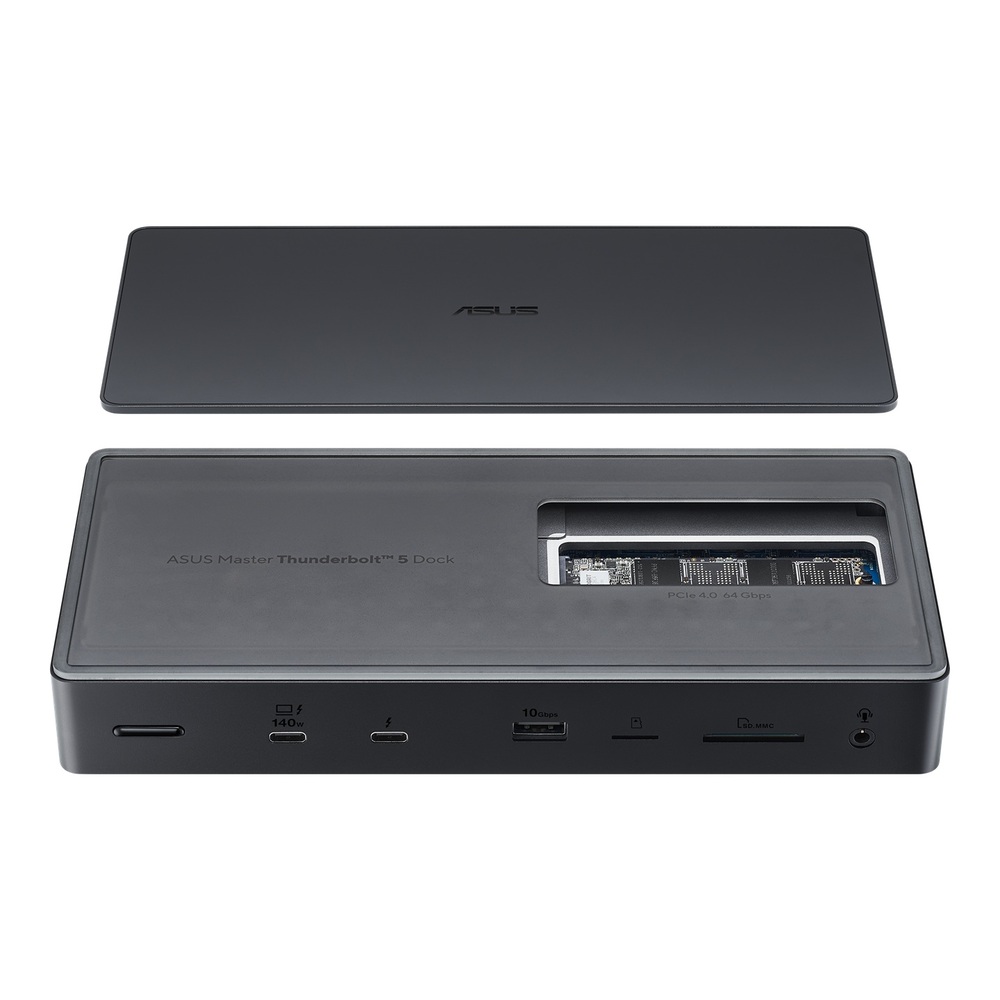

1 x M.2 NVMe PCIe 4.0 2280 SSD Slot
3 x USB 3.2 Gen2 Type-A port (10Gbps/5.0V 0.9A)
1 x USB 3.0 Gen2 Type-A port (5Gbps/5.0V 0.9A)
1x DC jack(7.4 phi)
Video Resolution
Thunderbolt 5 Ext. Output: 3840 x 2160@144Hz
OS Support
Windows® 10 or above
MacOS
Power Adapter
180W DC20.0V / 9.0A
Secutiry
Kensington lock
Cable Length
100cm
Color
Black
Weight
765g
Dimensions
220 x 96.7 x 38.1 mm
Material
Plastic, Metal
Package Contents
ASUS Master Thunderbolt 5 Dock, 180W adapter, power cord, user manual, warranty card
Power button
For ASUS ExpertBook series,
Dock power button emulates ASUS Expertbook power button.
For other notebooks,
Dock power button can turn on/off LED and the dock power
Indicator LEDs
Please refer to the manual for "LED Indicator Guide"
