Neomounts Monitor/TV Heavy duty Wall Mount Fixed 32''-75'' (NEOWL35-750BL14)

Neomounts Monitor/TV Heavy duty Wall Mount Fixed 32''-75'' (NEOWL35-750BL14)

Specifications

General
Min. screen size*:
 42 inch

Max. screen size*:
 75 inch

Max. weight:
 100 kg

Screens:
 1

VESA pattern:
 100x100, 100x150, 100x200, 120x120, 150x200, 200x100, 200x150, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 350x350, 400x200, 400x300, 400x400 mm

VESA minimum:
 100x100 mm

VESA maximum:
 400x400 mm

Distance to wall:
 9,3 cm

Functionality
Type:
 Tilt

Height adjustment:
 1 cm

Lockable:
 Lockable - Padlock not included

Tilt (degrees):
 +15°, -15°

Height:
 43 cm

Width:
 48,6 cm

Depth:
 9,3 cm

Adjustment type:
 Manual

Information
Article number:
 WL35-750BL14

EAN:
 8717371443542

Series:
 LEVEL 750

Color:
 Black

Main material:
 Steel

Warranty:
 5 year

Certification:
 TÜV

*Please note: The inch sizes stated are just an indication, combined with the weight and VESA sizes. The maximum weight and VESA size are absolute restrictions for the products and should not be exceeded.

42- 75 inch

100x100 - 400x400 mm

1 cm

9,3 cm

+15°, -15°

5 year

Product information

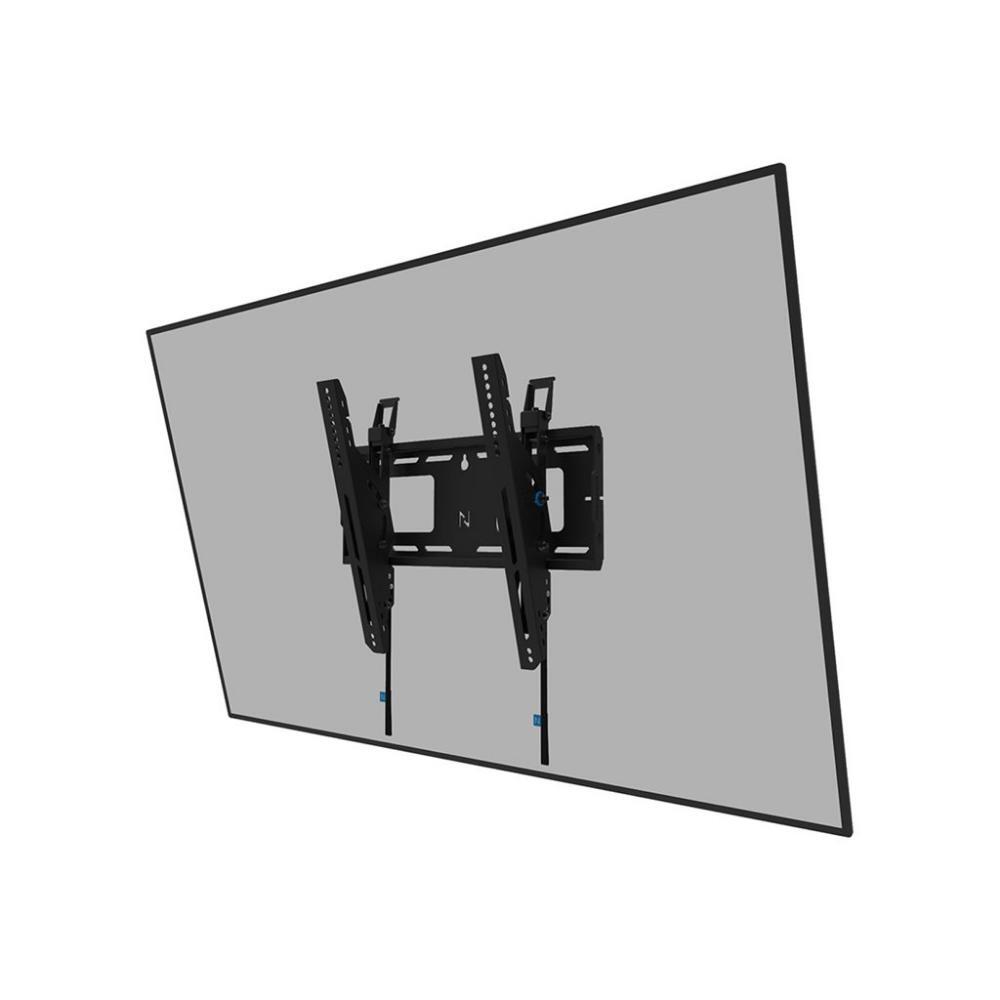

The Neomounts WL35-750BL14 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 75" with a maximum capacity of 100 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL35-750BL14 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
