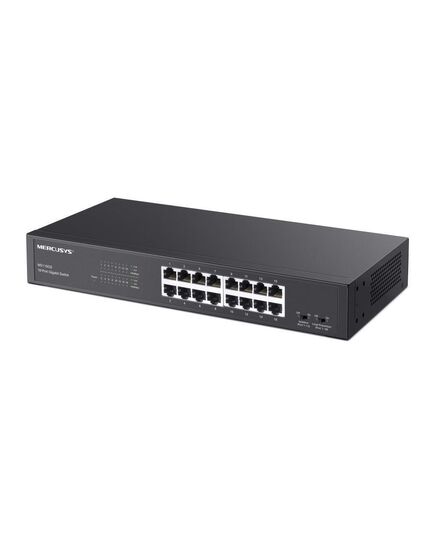

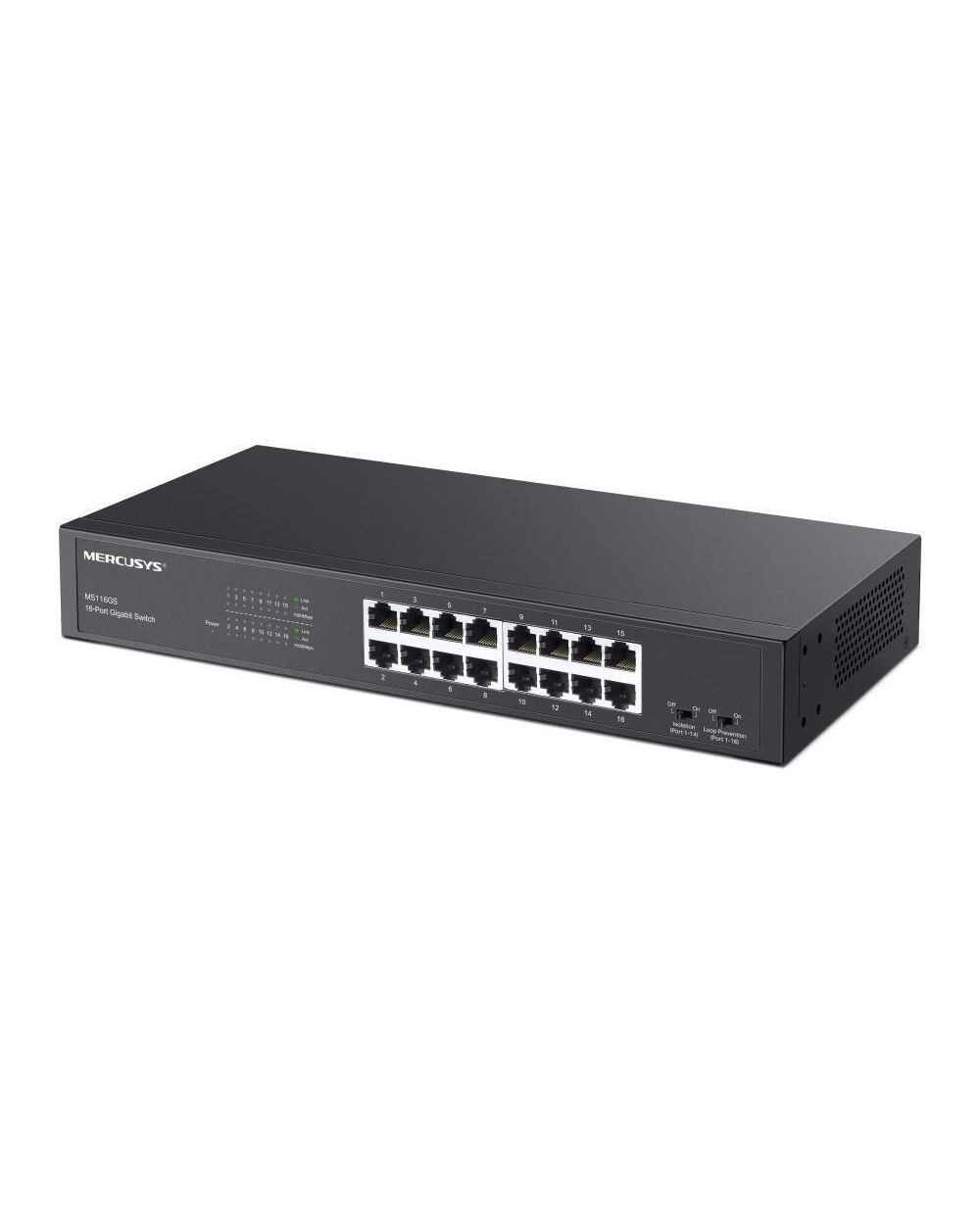

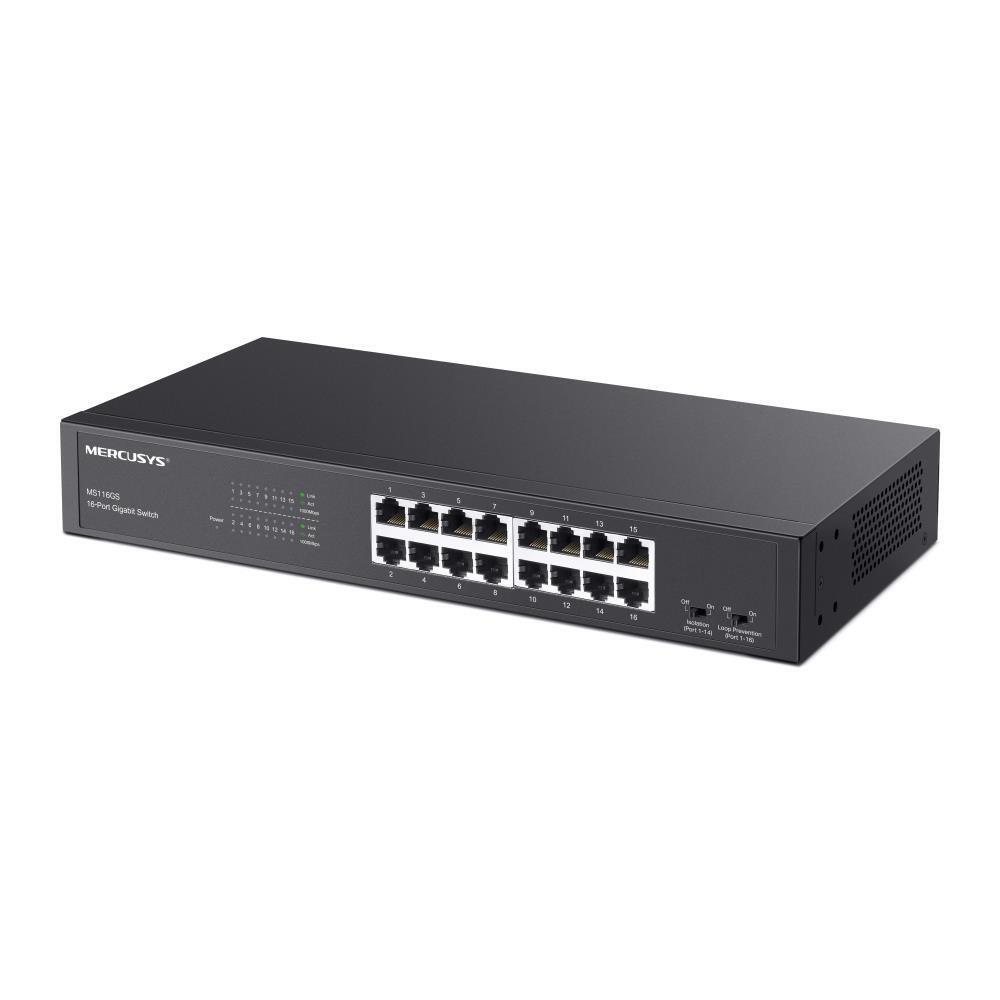

Mercusys 16-port Steel Case Gigabit Switch (MS116GS) (MERMS116GS)

Mercusys 16-port Steel Case Gigabit Switch (MS116GS) (MERMS116GS)

16-Port Gigabit Desktop/Rackmount Switch

• Full Gigabit Ports: 16× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Plug and Play: Simple to use and saves time and effort
• Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
• Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

HardwareStandards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

 Dimensions

294*140*44mm (11.6*5.5*1.7 in)

 Interfaces

16×10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX

 External Power Supply

100-240VAC, 50/60Hz

 Switching Capacity

32 Gbps

 LED

Power, Link/Act, 1000Mbps

 MAC Address Table

8K

SoftwareTransfer Method

Store and Forward

 Advanced Features

802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation

OthersCertifications

CE, RoHS

 Environment

Operating Temperature: 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
