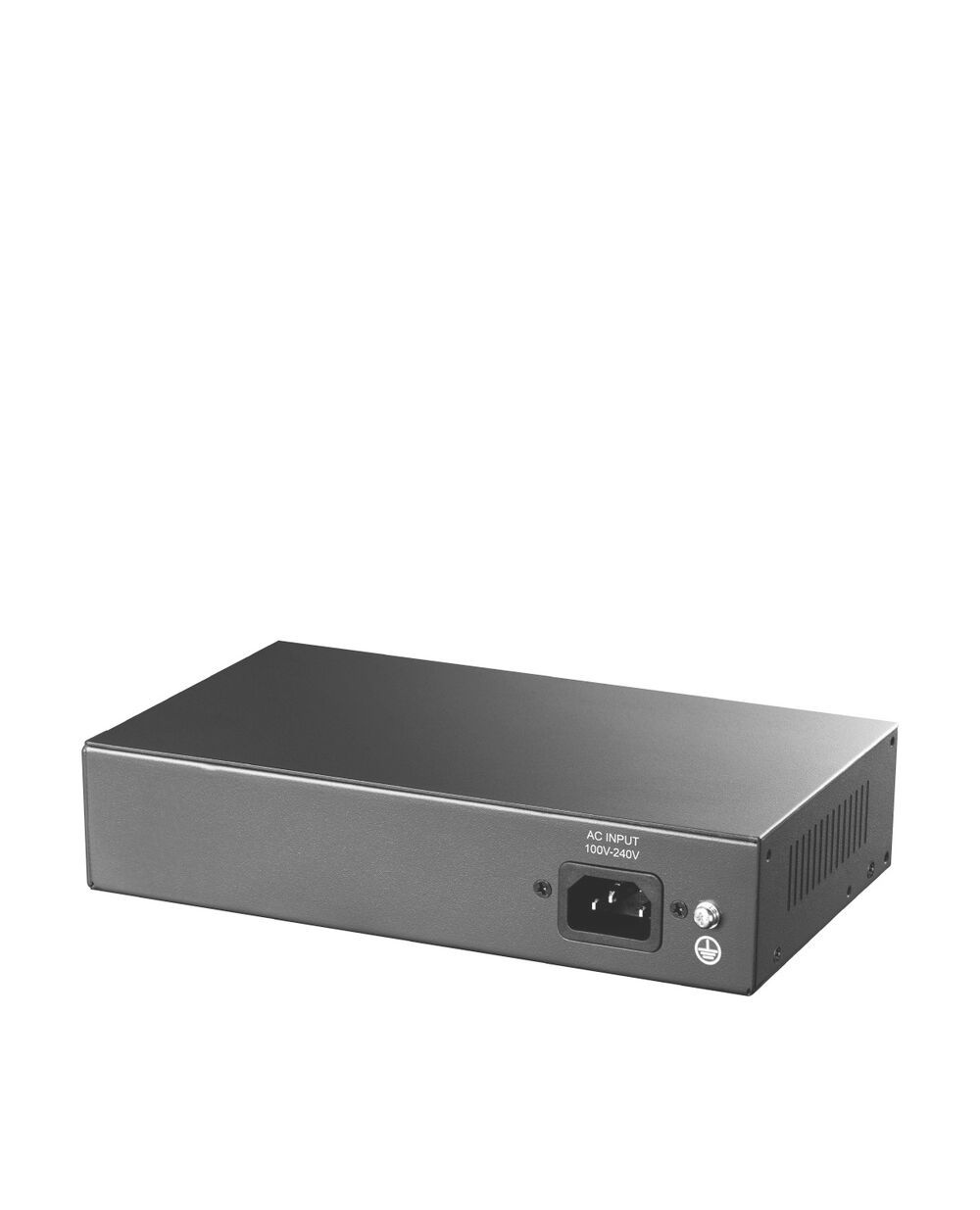

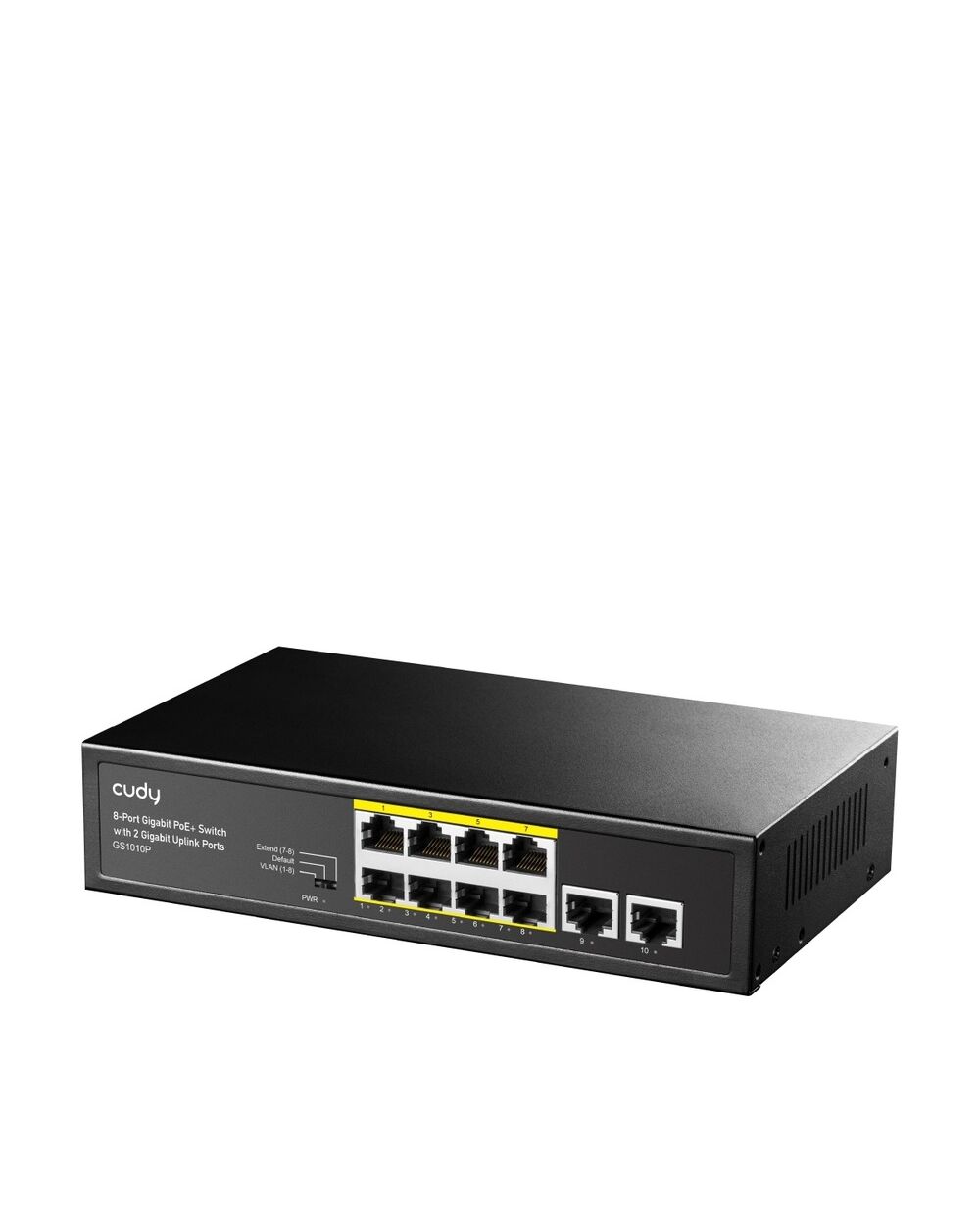

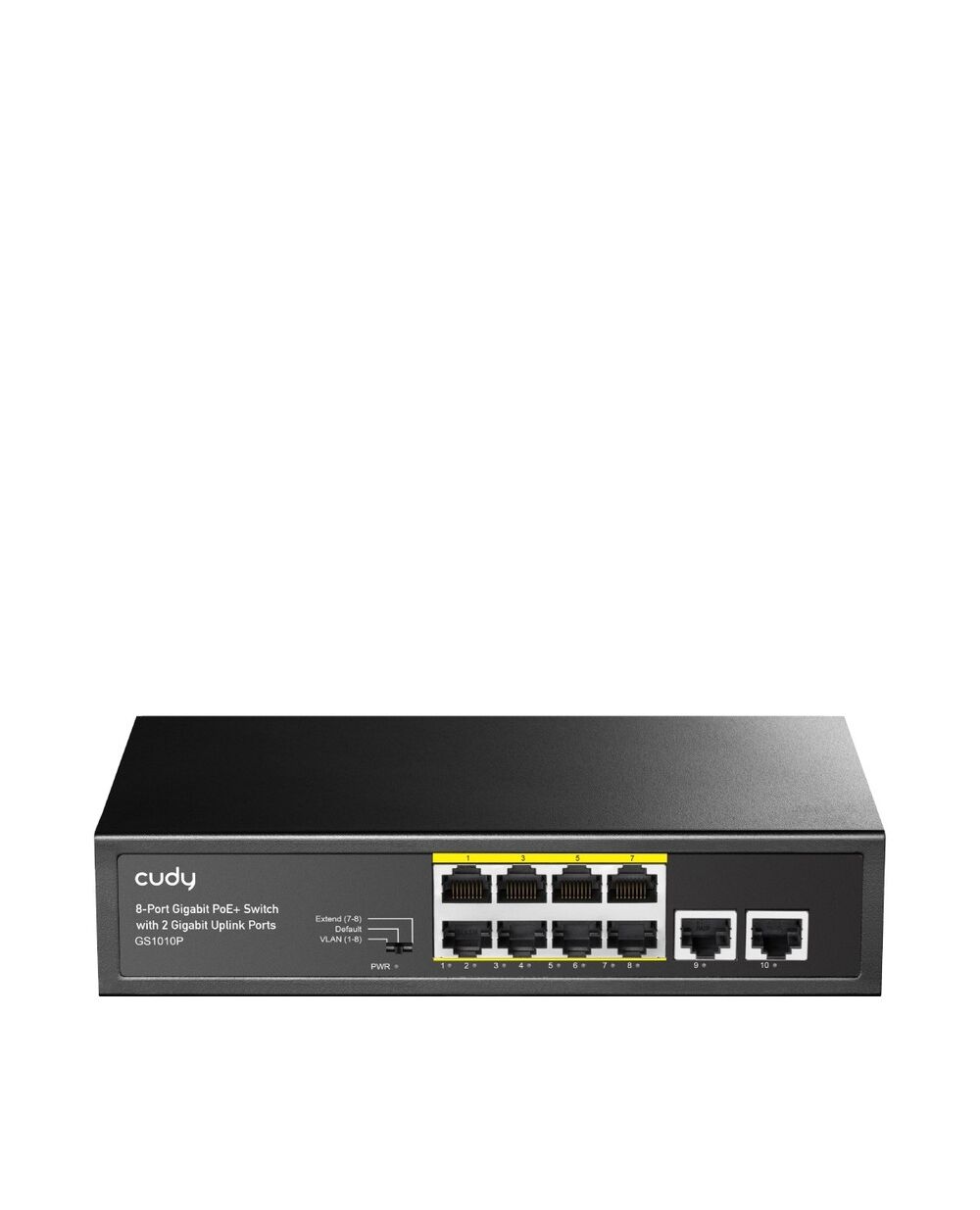

CUDY Switch GS1010P 8-Port Gigabit PoE+ with 2 Gigabit Uplink Ports

Modell version	GS1010P 1.0
Interfaces	Gigabit RJ45 Ports	10
	Gigabit RJ45 PoE Ports	#1~#8
	Max Power on a Single PoE Port	30W
	PoE Port Notes
Extend Mode Ports	#7~#8
	VLAN Mode Ports	#1~#8
	LED	Power Speed/Link/ACT of Each Ethernet Port PoE Status of Each PoE Port
	Power Input	AC Inlet
	Physical Buttons	VLAN/Default/Extend DIP Switch
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	2048
	Max Switching Capacity	20 Gbps
	Max Forwarding Rate	14.88 Mpps
	Jumbo Frame	2 KB
	Packet Buffer	448 Kbit
Power	Power Methods	AC
	AC	100-240V~, 50/60Hz
	Power Supply	120W
	Max Power Excluding PoE	10W
Switching	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE
Reliability	Grounding Methods
Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
Mechanical	Dimension	220×150×44 mm 8.66×5.91×1.73 inches
	Product Weight	630 g (22.22 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets (Brackets not included in the box)

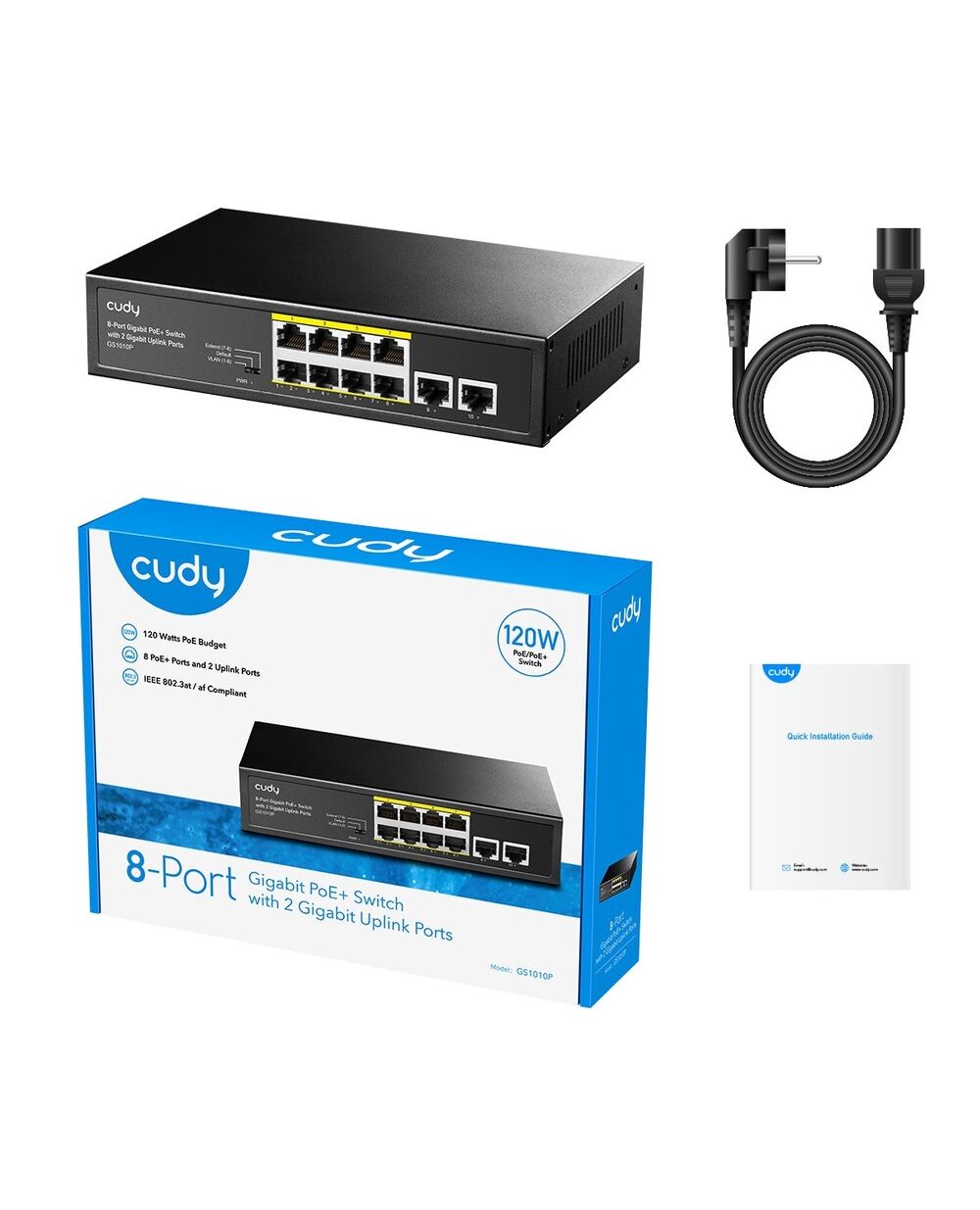

Package Content	GS1010P Power Cord Installation Guide
Ordering Information	Retail Package Dimension	245×190×60 mm 9.65×7.48×2.36 inches
	Retail Package Weight	EU: 936 g (33.02 oz.)
	Carton Net Weight	EU: 15.0 kg (33.07 lbs)
	Carton Gross Weight	EU: 15.5 kg (34.17 lbs)
