HPE Aruba Instant On AP32 (RW) 2x2 Wi-Fi 6 Indoor Access Point (S1T23A)
Περιγραφή
The HPE Networking Instant On Access Point AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point built to bring future-ready connectivity to small and medium businesses. The HPE Networking Instant On AP32 supports the new 6E wireless protocol that broadcasts on the 6GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the HPE Networking Instant On AP32 comes with a 2.5GbE uplink port and PoE to make connectivity and power easy. With a 2x2 antenna array supporting 2 spatial streams, the HPE Networking Instant On AP32 provides robust connectivity for up to 75 devices and 2.8Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5GHz and 6GHz bands to achieve faster throughput speed, or switch to 2.4GHz and 6GHz for impressive range for modern laptops or smartphones.
802.11ax Wi-Fi Certified 6E
- HPE Networking Instant On AP32 access points feature Orthogonal Frequency-Division Multiple Access (OFDMA), allowing multiple Wi-Fi 6 capable clients to be handled simultaneously per channel. This improves efficiency by boosting overall capacity, reducing latency, and improving end-user experience.
- Target Wake Time (TWT) – Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.
- Multiple Input, Multiple Output (MIMO) – Allows the access point to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) simultaneously.
Τεχνικά Χαρακτηριστικά
| Κατασκευαστής | HPE |
| Μοντέλο | Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E (RW) AP32 |
| Part Number | S1T23A |
| Κατηγορία | Access Points |
| Τύπος | Access Point |
| Πρωτόκολλο | WiFi 6 (802.11ax) |
| Ταχύτητα WiFi | AX4200 |
| Θύρες Ethernet | 1x 2.5 Gbps (Uplink DC Power Connector, LED status Indicators, Reset/LED control button, Kensington security slot) |
| Υποστήριξη PoE | Με PoE |
| Βάση οροφής (Ceiling Mount) | Με βάση οροφής (Ceiling/Wall mount clip) |
| Υποστήριξη Mesh | Όχι |

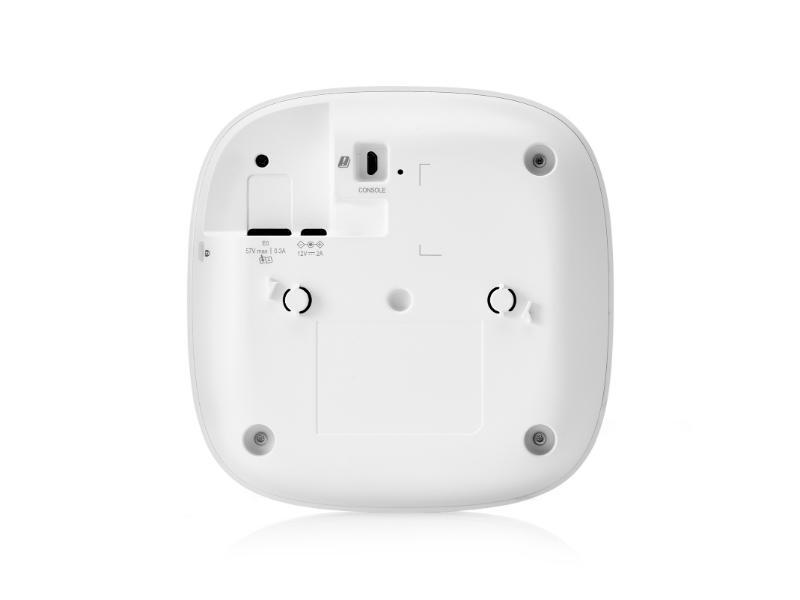

| Λοιπά στοιχεία | Radios Dual Radio for simultaneous dual-band operation 6 GHz 802.11ax 2x2 MIMO for up to 2.4 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 6) Interfaces Uplink 2.5Gbps Ethernet port, with PoE-in support (802.3at) DC power connector (12V) LED status indicators (2), Reset/LED control button Kensington security slot Physical Specifications 160 (W) x 160 (D) x 39 mm (H), excluding mount accessories Weight: 520g Power Power over Ethernet (POE): 802.3at (class 4) Max power consumption (worst-case): 12.9W (PoE), 11.0W (DC) DC power (12V) Note: Power sources are sold separately Antennas Integrated Down-tilt Dual Omni- directional 2x2 MU-MIMO with peak antenna gain of 2.8dBi in 2.4GHz and 4.5dBi in 5GHz and 6GHz (of the effective, combined pattern for both antennas in each band). Mounting The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) that matches the aesthetic design and looks of the APs, to blend seamlessly into your environment. In the Box Instant On AP32 Indoor Access Point Instant On AP32 Quick Start guide Ceiling rail mount clip Ethernet cable |
| Εγγύηση | 2 Έτη |
