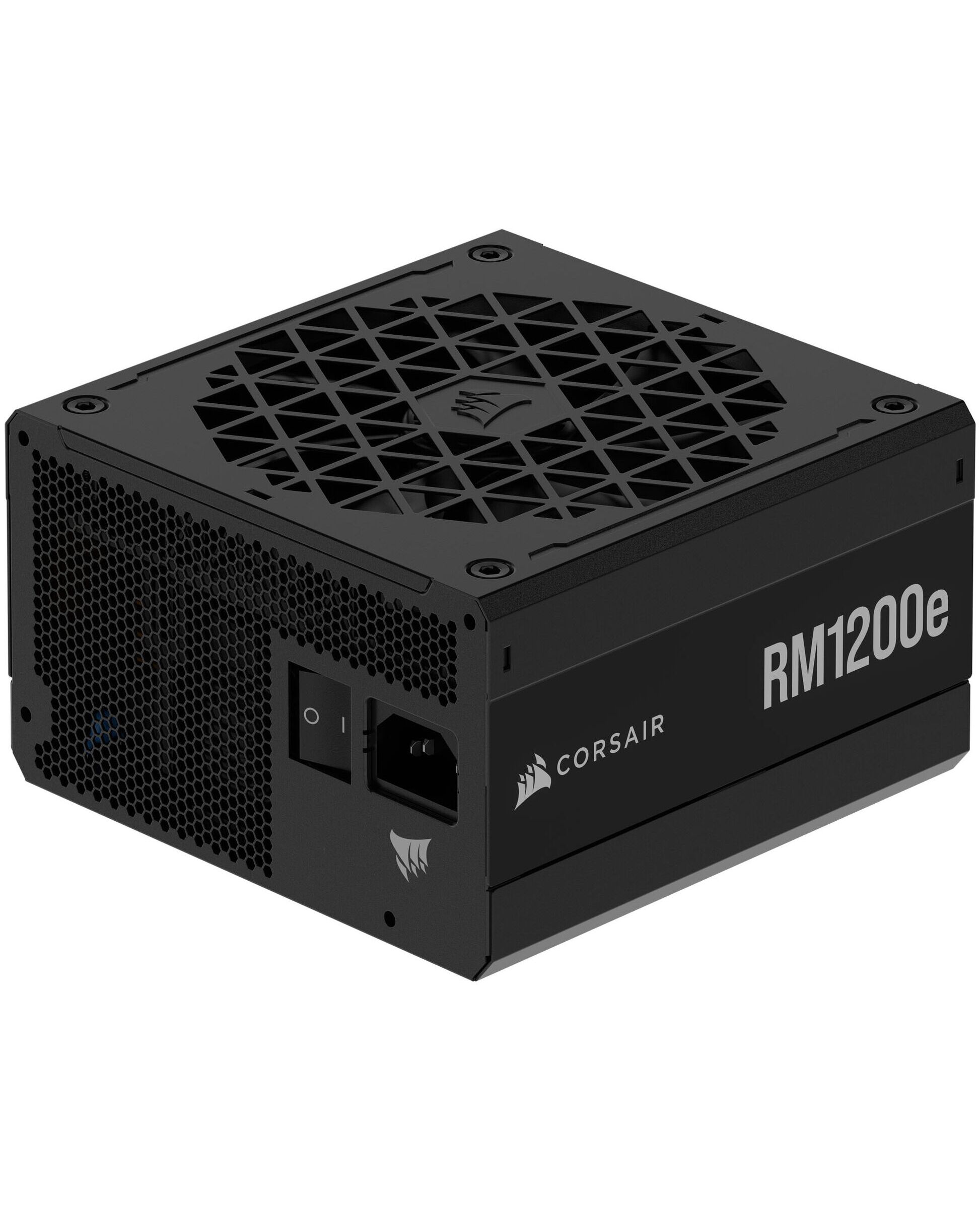

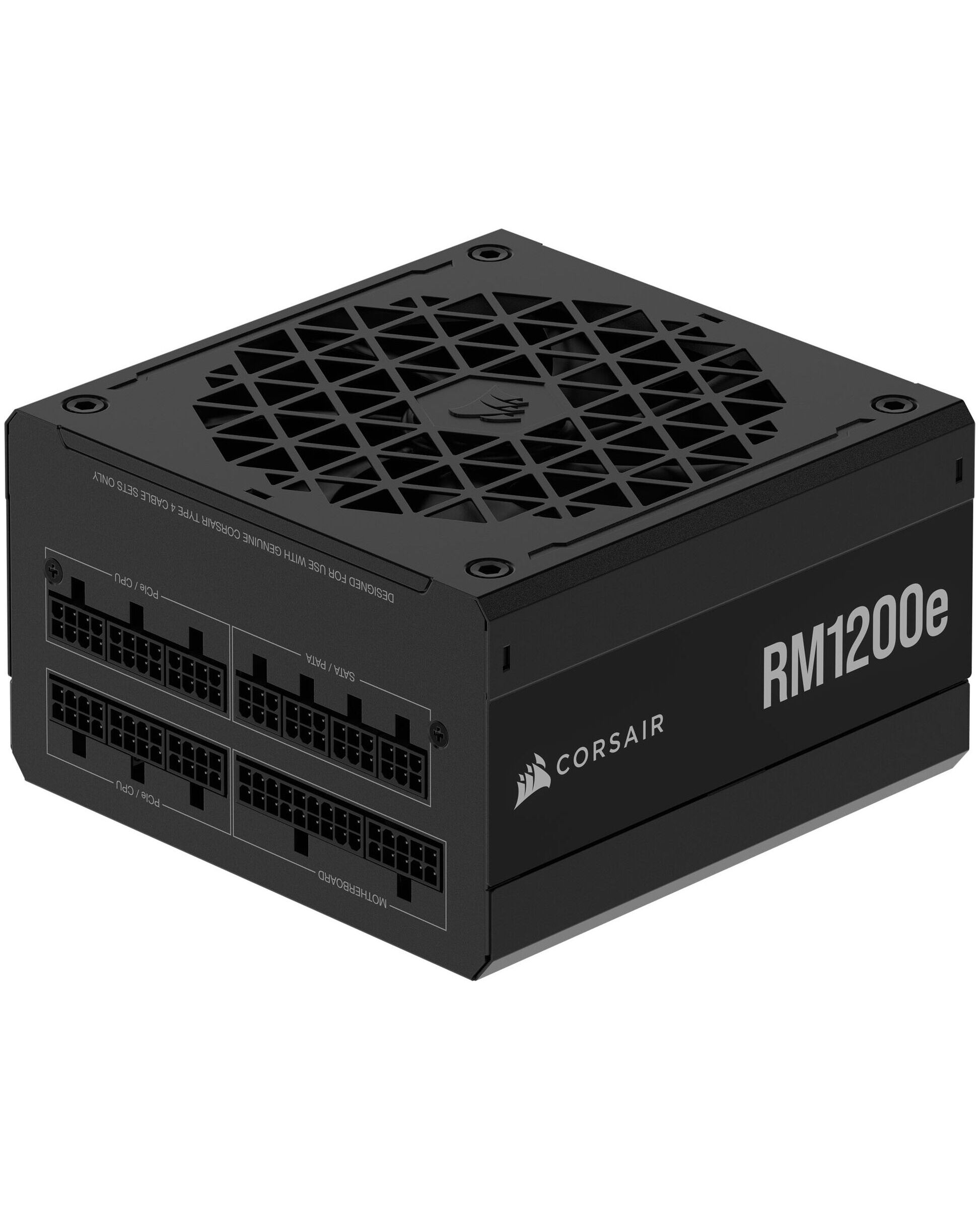

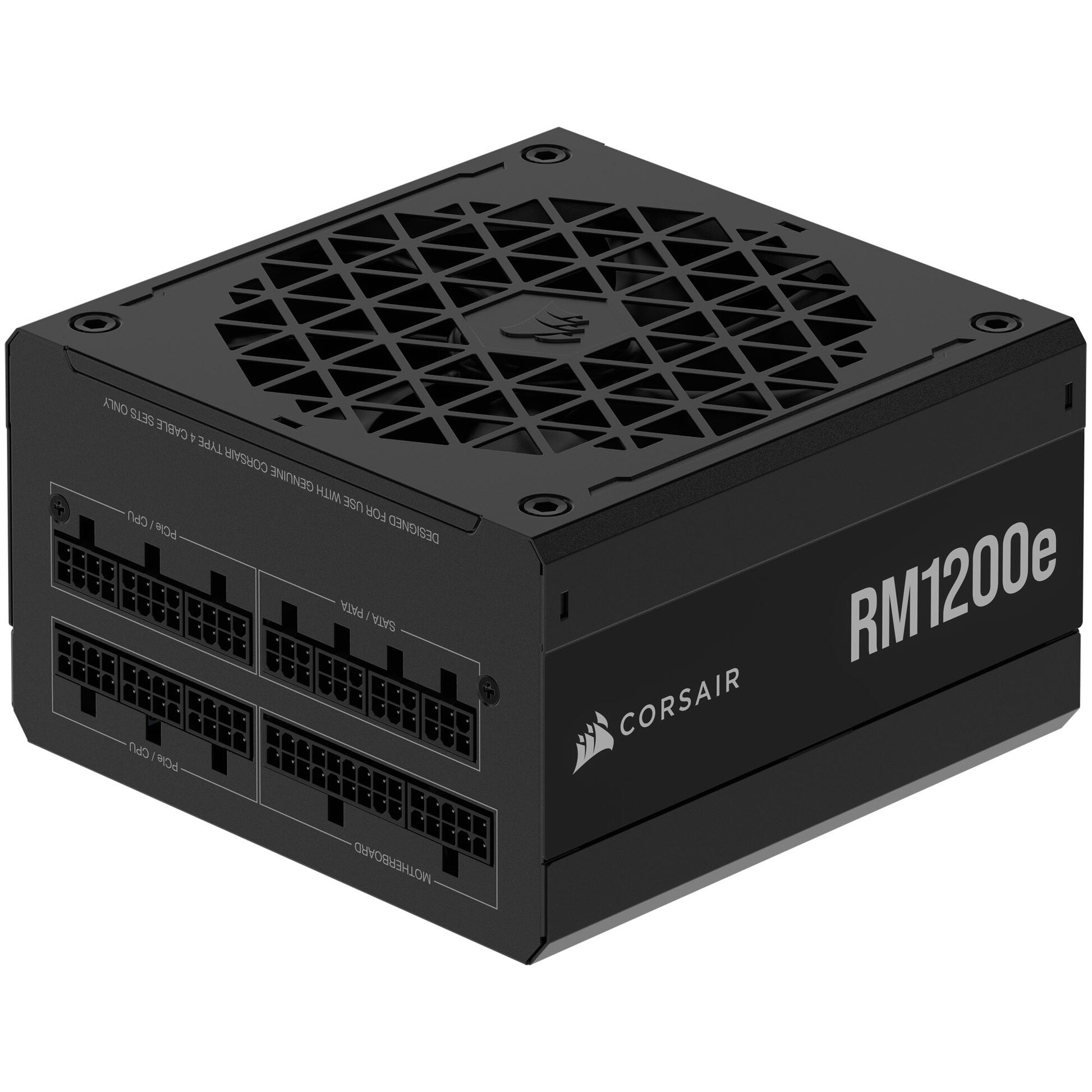

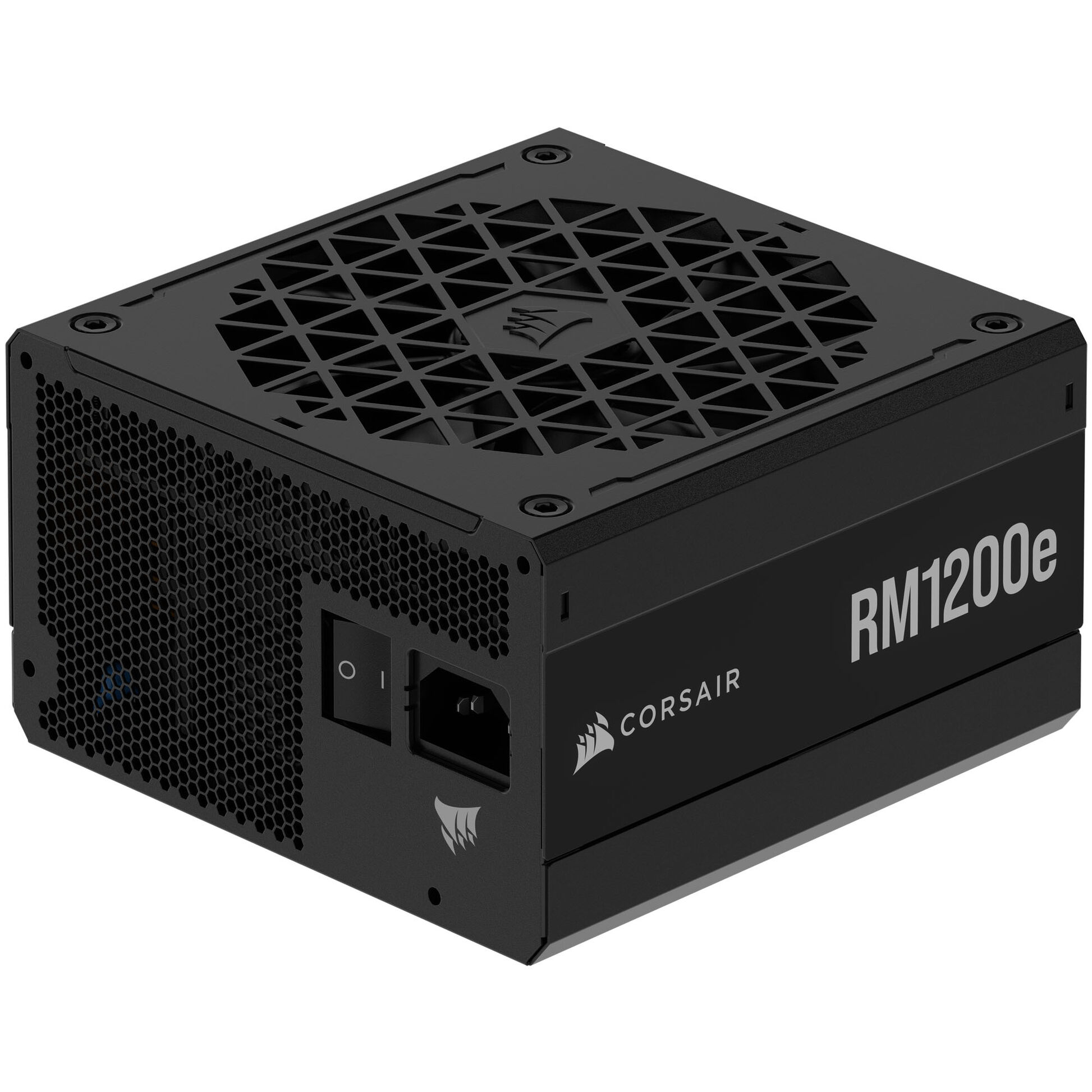

CORSAIR PSU RM1200e Gold, Fully Modular
SAFETY AND PROTECTION
OVER-VOLTAGE PROTECTION (OVP)
Over-voltage protection for the 12V, 5V, and 3.3V DC outputs is required to comply with the ATX specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer.
OVER-CURRENT PROTECTION (OCP)
OCP is featured on the 3.3V, 5V, and 12V rails. OCP ensures that the output of the DC voltage rails remains within safe operating limits.
OVER-TEMPERATURE PROTECTION (OTP)
OTP ensures that the PSU will shut down when the internal temperature reaches a set point. This is usually as a result of internal current overloading or a fan failure.
SHORT-CIRCUIT PROTECTION (SCP)
A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures that the PSU shuts down should the 3.3V, 5V, and 12V rails short to any other rail, or to ground. It also ensures that no damage should occur to the unit, or your PC’s components in the event of a short.
OVER-POWER PROTECTION (OPP)
Over-power protection shuts off the PSU when the power drawn is between 115% and 135% of the rated power.
RM1200e SPECIFICATIONS
| Length | 150mm |
| Width | 150mm |
| Height | 86mm |
| CORSAIR RM1200e POWER TABLE | MAX LOAD | MAX OUTPUT | ||
|---|---|---|---|---|
| MODEL | RPS0189 | +3.3V | 20A | 150W |
| PART NO. | 75-005636 | +5V | 20A | |
| FREQUENCY | 47Hz - 63Hz | +12V | 100A | 1200W |
| INPUT CURRENT | 15A - 7.5A | +5Vsb | 3A | 15W |
| AC INPUT RATING | 100V - 240V | |||
| TOTAL POWER: 1200W | ||||
POWER SUPPLY EFFICIENCY
FAN NOISE CURVE

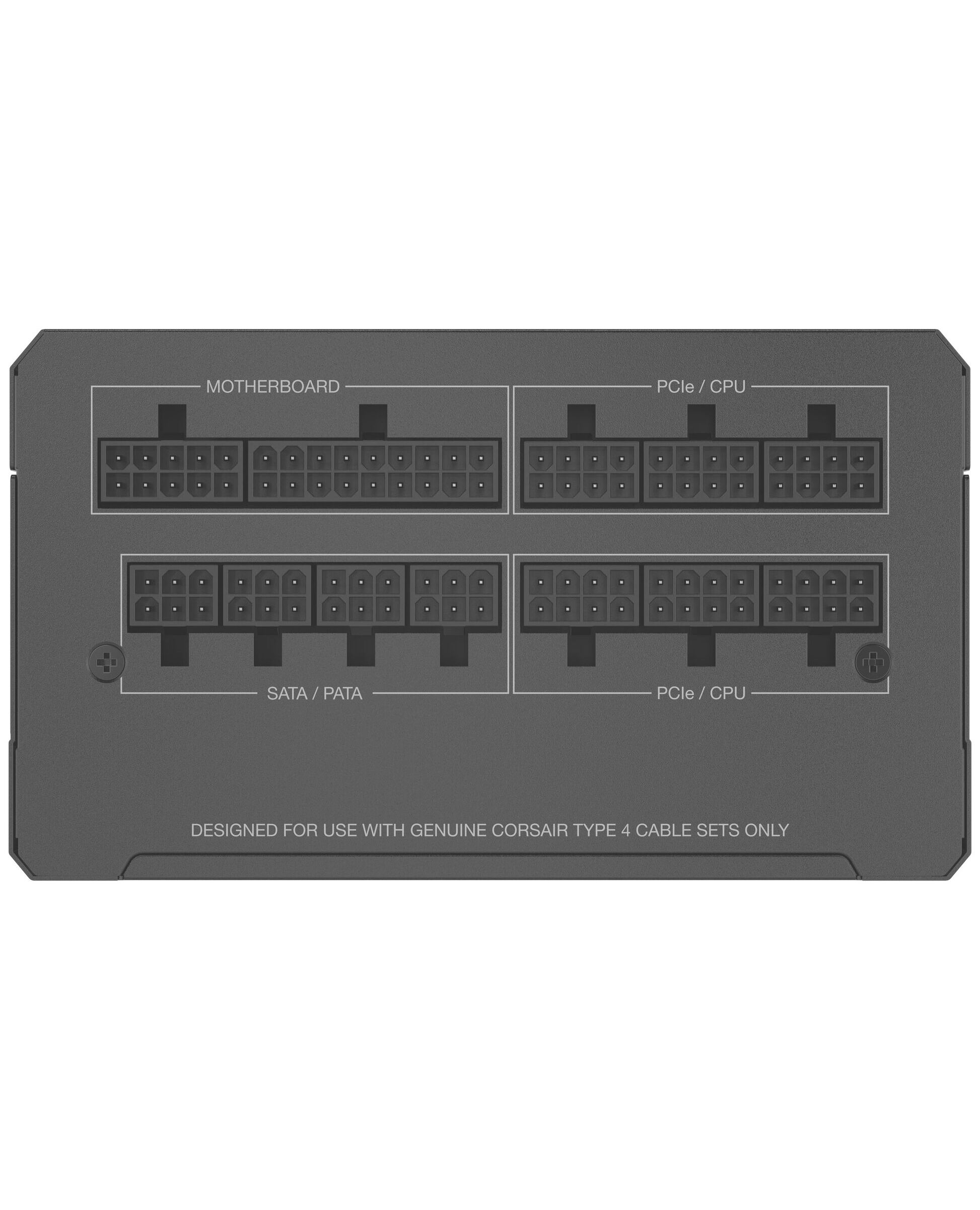

INCLUDED ACCESSORIES
1x ATX (24 pin) cable
1x 12VHPWR (12+4 pin) cable
2x EPS/ATX12V 8-pin (4+4) cable
2x PCIe cable 8-pin (6+2) cable
2x Dual PCIe 8-pin (6+2/6+2) cable
1x SATA (3 SATA) cable
1x SATA (4 SATA) cable
1x PATA (4-pin) cable
