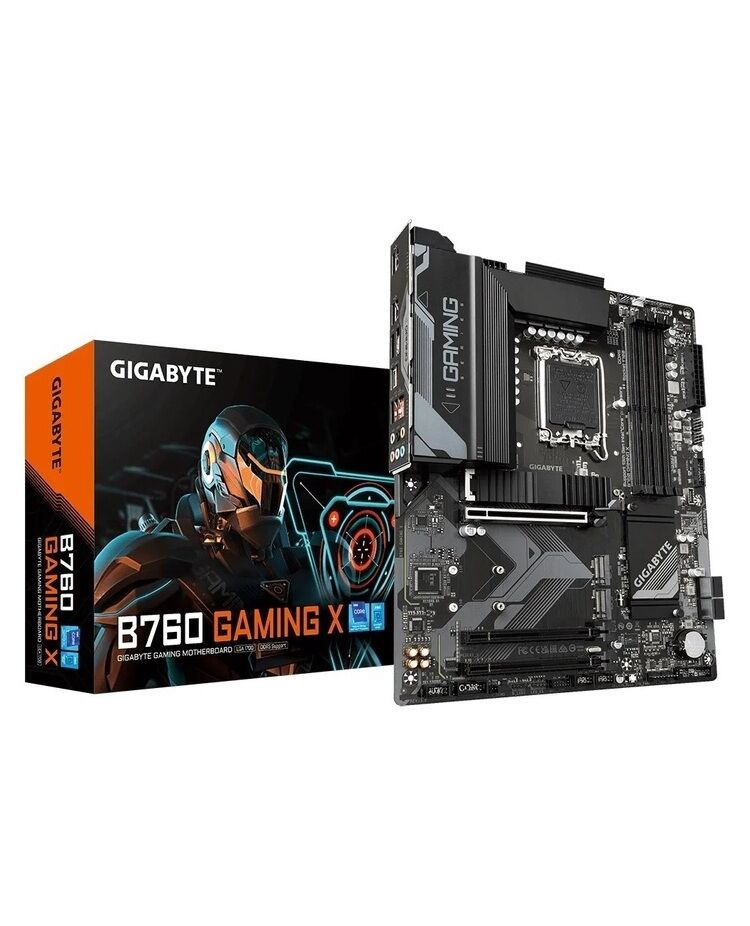

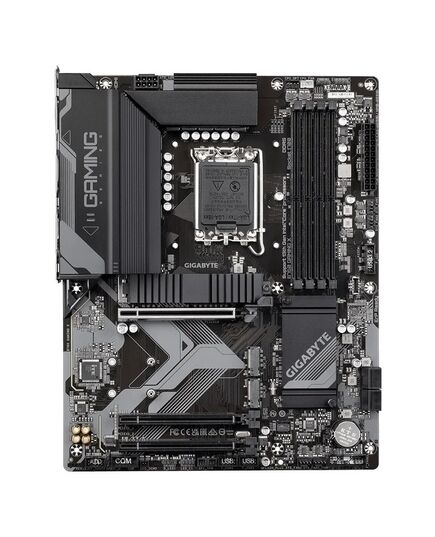

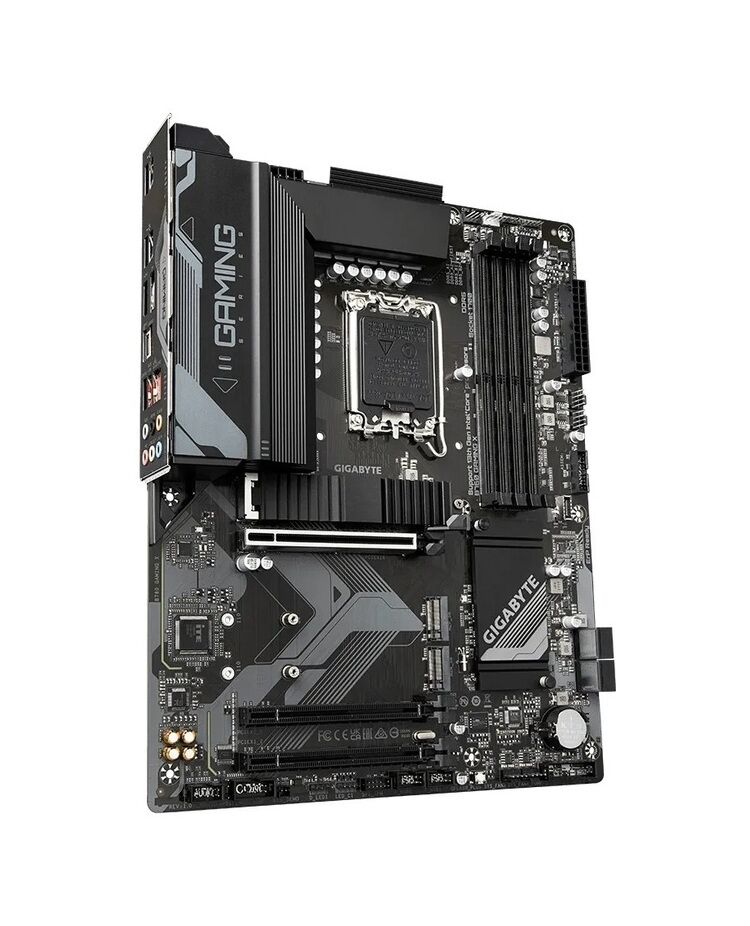

GIGABYTE MOTHERBOARD B760 GAMING X DDR5, 1700, ATX

ΚΩΔΙΚΟΣ (SKU): 58125

145⁰⁰ ^€

Διαθέσιμο 1 έως 3 ημέρες

Διαθεσιμότητα ανά αποθήκη

Αθήνα, Λ. Μεσογείων 20

Στην κεντρική αποθήκη

+ −

Αγοράστε με 1-κλικ

Κάνε μια ερώτηση

Μεταφορικά

Τρόποι Πληρωμής

Περιγραφή
Χαρακτηριστικά

GIGABYTE MOTHERBOARD B760 GAMING X DDR5, 1700, ATX

Description

The Gigabyte B760 Gaming X AX (rev. 1.0) motherboard is aimed at users looking for a fully functional motherboard to build a gaming system on a mid-range budget.

The motherboard supports Intel 13th and 12th generation processors and features technologies such as DDR5 Memory, Dual M.2 with PCIe Gen4 and Thermal Guard, Realtek 2.5GbE LAN, Wi-Fi 6E (802.11ax) and Bluetooth 5.1, as well as RGB Fusion 2.0 for impressive system lighting.

Intel Socket LGA 1700: Supports 13th and 12th Gen processors
Unmatched performance: 8+1+1 phase hybrid digital VRM solution
Dual channel DDR5 memory support: 4*DIMMs XMP
Next-gen storage: 3*PCIe 4.0 x4 M.2 Connectors
Advanced thermal design and M.2 thermal guard: Ensures VRM power stability and M.2 SSD performance
EZ-Latch: PCIe 4.0x16 slot with quick release design
Fast networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Expanded connectivity: Front USB-C 10Gb/s, DP, HDMI
Smart Fan 6: Features multiple temperature sensors, hybrid fan headers with FAN STOP
Q-Flash Plus: Update BIOS without installing the CPU, memory, and graphics card

PCIe 4.0 Design

The Gigabyte B760 motherboards are ready to work with PCIe 4.0 devices, which are expected to have triple the bandwidth of current PCIe 3.0 devices. To achieve high speed and maintain good signal integrity, Gigabyte's research and development uses low-resistance PCB to provide maximum performance.

DDR5 Overclocking

Gigabyte offers a tested and proven platform that has the capability to overclock memory up to 7600 and even more. For DDR5 XMP memory, all users need to do to achieve a high performance boost is to ensure their memory module is XMP capable and that the XMP function is enabled on the motherboard.

Three PCIe 4.0 x4 M.2 slots

Gigabyte motherboards focus on providing M.2 technology to tech enthusiasts who want to maximize their system's capabilities.

Gigabyte PerfDrive

The PerfDrive technology incorporates multiple exclusive BIOS settings from Gigabyte to allow users to easily balance between different levels of performance, power consumption, and temperature according to their needs when using Intel Core 13th generation processors.

M.2 Thermal Guard

With durability in mind, Gigabyte provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and congestion from high-speed M.2 SSDs, as it helps dissipate heat before it becomes an issue.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support both PWM/DC fans and pumps, and users can easily set each fan curve based on different temperature sensors across the system through an intuitive user interface.

802.11ax Wi-Fi 6E

Latest 802.11ax Wi-Fi 6E wireless solution with a new exclusive 6GHz band, allowing gigabit wireless performance, providing smooth video streaming, better gaming experience, fewer dropped connections, and speeds up to 2.4Gbps. Additionally, Bluetooth 5 offers 4X the range compared to BT 4.2 and faster transmission.

Dedicated spectrum in the 6GHz band for fewer interferences
5.5X performance over 802.11ac 1x1
4X better network capacity, without traffic congestion especially in these dense areas with many devices
Increase in network efficiency for a better user experience

2.5GbE LAN

The adoption of LAN 2.5G provides network connectivity up to 2.5GbE, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with an ultimate online gaming experience.
Support for Ethernet RJ-45 Multi-Gig (10/100/1000/2500Mbps)

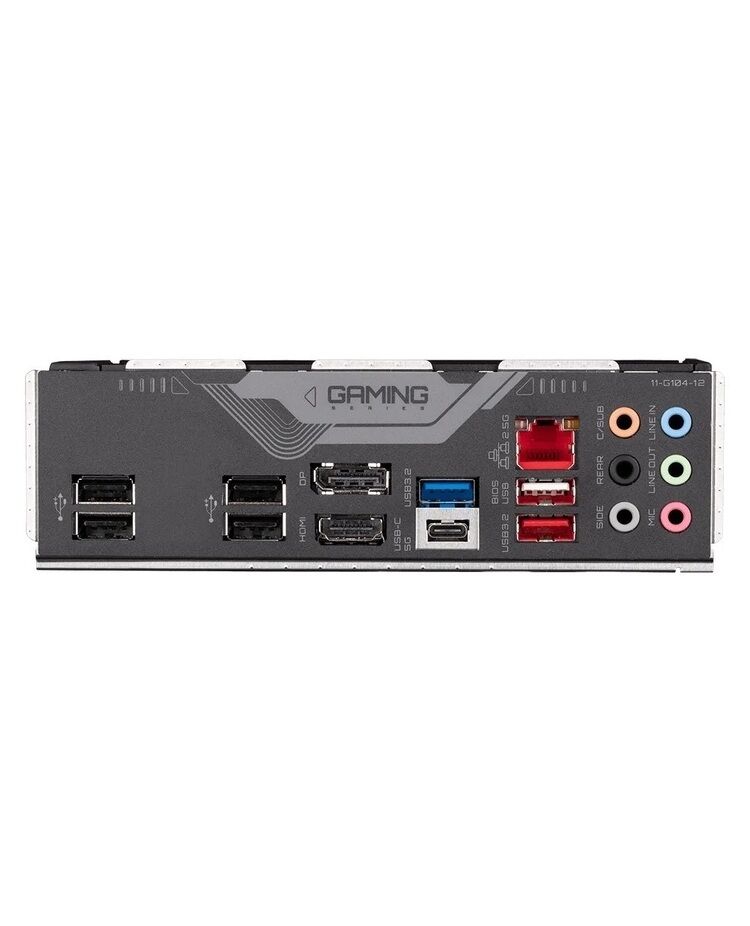

Ports

1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks

Gigabyte Control Center

The Gigabyte Control Center (GCC) is a unified software for all products supported by Gigabyte. It provides a newly designed intuitive user interface for controlling all key functions.

Unified software platform for all supported Gigabyte products
Intuitive user interface for an easy experience
Modular control elements only for installed hardware
Auto-update function to keep the system up-to-date and support future products

PCIe EZ-Latch

Having trouble removing the heavy graphics card? The newly integrated EZ-Latch Plus design on Gigabyte motherboards simplifies the computer building process, as it makes removing the graphics card easier with a simple press of the bottom.

M.2 EZ-Latch Plus

The newly integrated EZ-Latch Plus design on motherboards simplifies the computer building process, making the installation of M.2 SSDs easier than ever, without needing a single screw.

Q-Flash Plus

With Gigabyte Q-Flash Plus, you don't need to install the CPU, memory, and graphics card or enter the BIOS menu to flash the BIOS. Simply download and save a new BIOS file (rename it to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're ready to go!

Manufacturer

Specifications

Product Details

SizeATX
TypeDesktop

Processor

Supported ProcessorsIntelModelsCeleron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual CoreSupported CPU GenerationAlder Lake, Raptor LakeSocket1700

Chipset

ModelIntel B760

Memory

Memory typeDDR5
Quantity4 DIMM SlotsMemory Speeds4000, 4800, 5200OC, 5400OC, 5600OC, 5800OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC
Memory ChannelsDual Channel
