ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX (90MB1BB0-M0EAY0) (ASU90MB1BB0-M0EAY0)
ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX (90MB1BB0-M0EAY0) (ASU90MB1BB0-M0EAY0)
Περιγραφή
ROG Strix B650E-E Gaming WiFi
Take your build from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.
ALL-ROUND PERFORMANCE
With its jacked up power solution, beefy VRM heatsinks, and incredible throughput to connected components, the ROG Strix B650E-E goes toe-to-toe with the greatest that Ryzen 7000 can offer.
.jpg)
LEADING CONNECTIVITY
Backing up its core performance, the ROG Strix B650E-E packs superfast WiFi and tethered networking, as well as immersive audio courtesy of its enhanced SupremeFX solution.
.jpg)
PLAY IN STYLE
A black PCB and heatsinks match most hardware, and customizable RGB lighting furthers its flexibility. Pair the Strix B650E-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
.jpg)
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II |
| Onboard Graphics Outputs | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz 1 x DisplayPort |
| PCI Slots | AMD Ryzen™ 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_4 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode) |
| Networking | 1 x 2.5Gb Ethernet WIFI 6E Bluetooth |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |

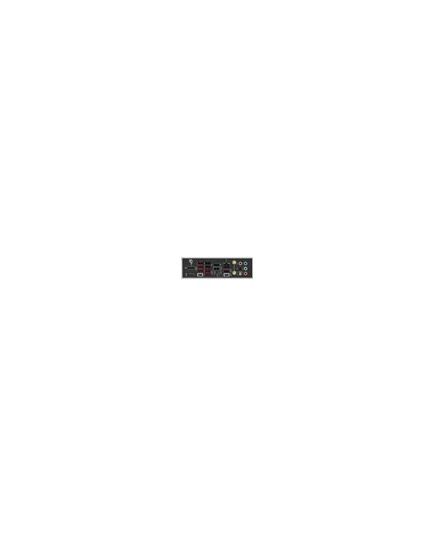

| Connectivity | 1 x USB 3.2 Gen 2x2 port (1 x Type-C®) 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports 1 x DisplayPort 1 x HDMI® port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Τεχνικά Χαρακτηριστικά
| Κατασκευαστής | Asus |
| Μοντέλο | ROG Strix B650E-E Gaming WiFi |
| Part Number | 90MB1BB0-M0EAY0 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD B650 Extreme |
| Μέγεθος μητρικής | ATX |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 (2 x PCIe 5.0 x16, x8,x4, 1x PCIe 4.0 x4) |
| Αποθήκευση | 4x SATA 4x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 1x DisplayPort v1.4 |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi 6E Bluetooth USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
